AIR CONDITIONERS AND EQUIPMENT · INVERTER AIR CONDITIONERS

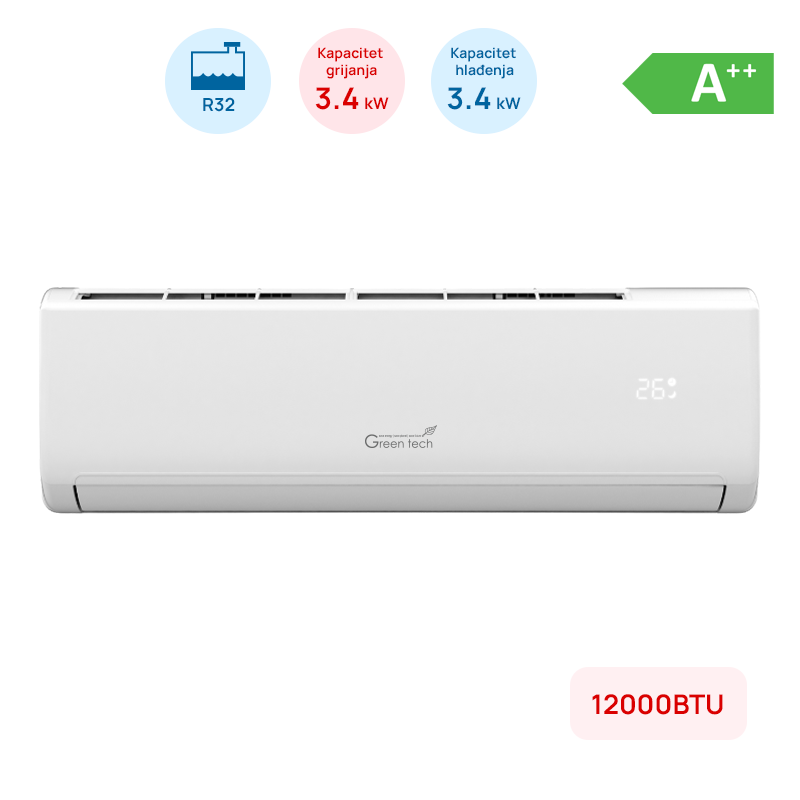

Klima 12000BTU, 3.4kW, A++, R32, -22°C ~ 53°C, s grijačem, bijela

Green Tech Code: 12-IND2 EAN: 3858893889779

In stock Checked: 9 Jun 2026

Potrošnja energije (grijanje) 922 (290～1720) W

Air conditioner power 12000 BTU

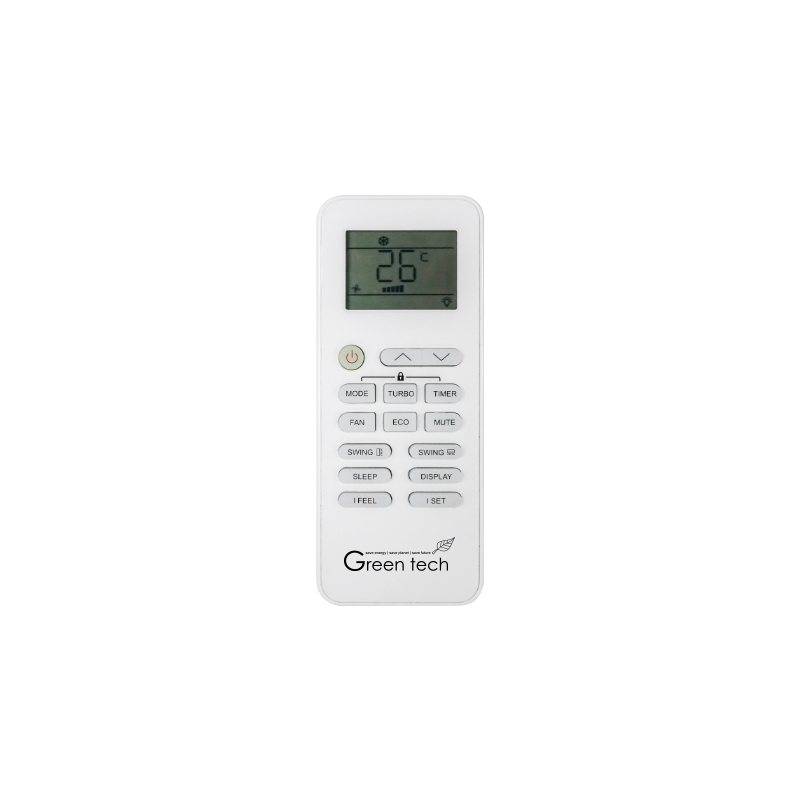

Control type RF daljinski upravljač

Declared cooling power 3400 (1000 ~ 3770) W

Declared heating power 3420 (1000 ~ 3810) W

Send inquiry View specifications

5-year warranty
Available at partners

Send inquiry

Technical specifications

Mechanical & dimensions

Net weight: unutarnja jedinica - 8 kg / vanjska jedinica - 24 kg

Climate & HVAC

Energy class (cooling): A++

Other

Air conditioner power: 12000 BTU
Control type: RF daljinski upravljač
Declared cooling power: 3400 (1000 ~ 3770) W
Declared heating power: 3420 (1000 ~ 3810) W
Pdesign (cooling): 3400 W
SEER declared: 6,1 W/W
Pdesign heating (average): 2400 W
SCOP declared (average): 4,0 W/W
Annual energy consumption: 195 kwh/a (hlađenje); 840 kwh/a (prosjek)
Dehumidification: 1,2 litara/h
Indoor sound power (S/H/M/L/Mute): 50 / 47 / 43 / 35 / 32 dB(A)
Outdoor sound power: 60 dB(A)
Indoor sound pressure (S/H/M/L/Mute): 40 / 37 / 33 / 25 / 22 dB(A)
Outdoor sound pressure: 50 dB(A)
Power supply: 220 - 240 V ~ / 50 Hz / 1 Ph
Power supply position: vanjska
Voltage range: 165 - 265 V
Operating current (cooling): 5,8 (1,5～9,0) V
Operating current (heating): 4,7 (1,5～10,0) V
Energy consumption (cooling): 1130 (290～1500) W
Compressor: vrsta: rotacijski / model: KSK103D33UEZC3 / MFG: GMCC
Indoor fan type: križno strujanje
Indoor fan speed (S/H/M/L/Mute): hlađenje - 1250 / 1150 / 950 / 850 / 700 rpm
Outdoor fan type: ventilator s propelerom
Outdoor air circulation: 1900 m³/h
Outdoor fan speed (S/H/M/L/Mute): hlađenje - 850 / 810 / 730 / 620 / 550; grijanje - 850 / 810 / 730 / 620 / 450
Wire connection (core and size): 4 x 0,75 mm²
Expansion device: kapilarni
Connecting pipe: gas - 3/8" ; tekućina: 1/4"
Field of application: 14 ~ 22 m2
Maximum refrigerant pipe length: 25 metara
Maximum level (height) difference: 10 metara
Operating temperature range: 16 - 31 °C
Ambient temperature range (outdoor unit): hlađenje: -22 - 53 °C; grijanje: -22 - 30 °C
Indoor unit dimensions (W × H × D): 777 x 250 x 201 mm
Outdoor unit dimensions (W × H × D): 777 x 498 x 290 mm
Indoor unit color: bijela
Certificates: CE, RoHS
