SENSORS AND CONTROLLERS · SENSORS AND DETECTORS

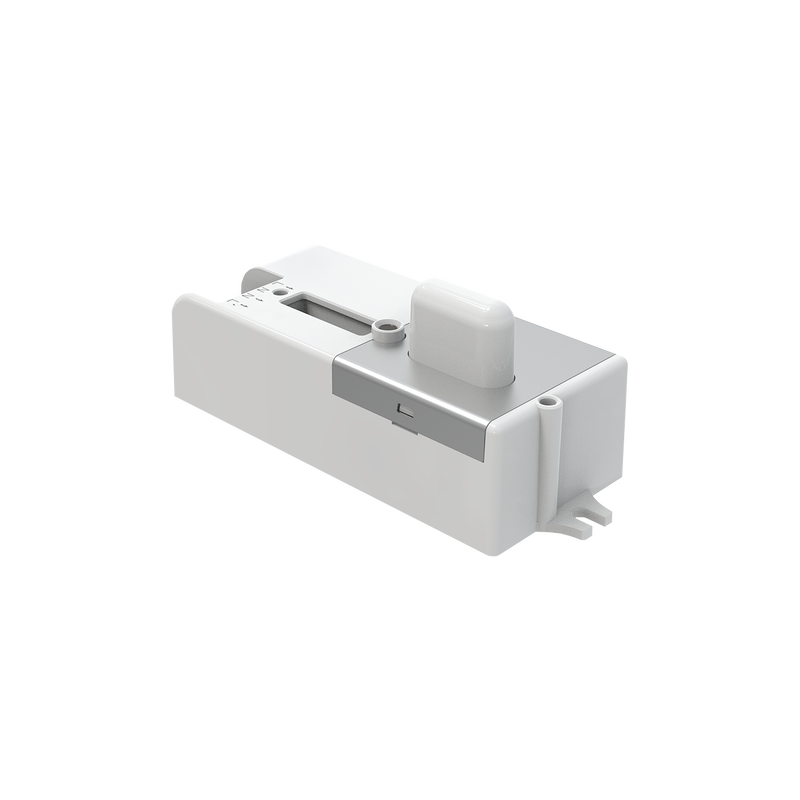

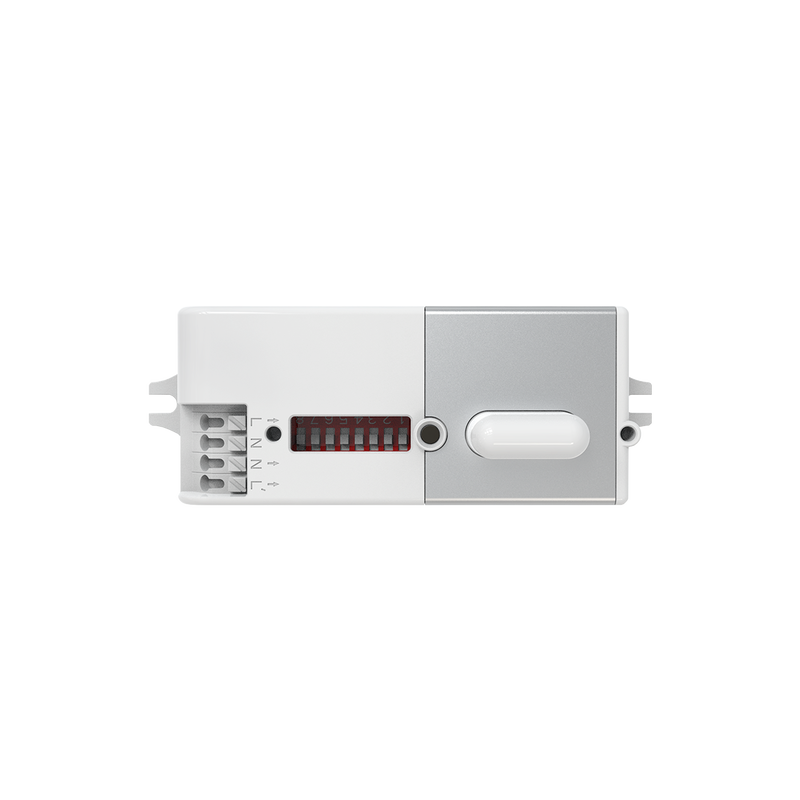

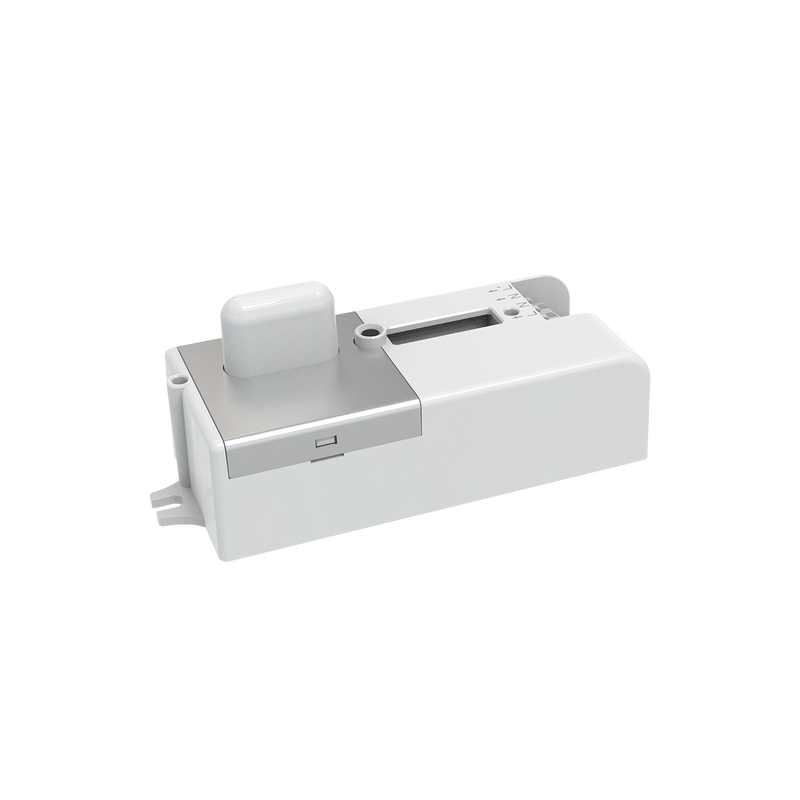

Senzor pokreta za LED vodotijesne svjetiljke
Maksimalno opterećenje induktivno / rezistentno: 400 W / 800 W
- 5-year warranty
- Available at partners
Technical specifications
Electrical
- Voltage
- AC 220 - 240 V / 50 - 60 Hz
Mechanical & dimensions
- Net weight
- 0,046 kg
- Item dimensions
- 103.5 x 30 x 20 mm
Other
- Installation method
- 2700 - 3200 K
- Podesivo područje detekcije
- 25 – 100%
- Podesivo vrijeme zadržavanja
- 5 s – 30 min
- Podesiv prag osvjetljenja
- 2 – 150 LUX / isključeno
- Standby consumption
- ≤ 0.5 W
- Maximum load
- 200 W @ 230 V AC (induktivno), 400 W @ 230 V AC (otporno)
- Overvoltage protection
- 1 kV (L/N, EN61000-4-5)
- Radna frekvencija
- 5.8 GHz ± 75 MHz (ISM opseg)
- Snaga odašiljanja
- maks. 1 mW
- Operating temperature
- -25 °C do 60 °C
- Vlažnost
- ≤ 85% (bez kondenzacije)
- Presjek vodiča
- 0.5 – 0.75 mm²
- Maximum detection range
- 6 m / svijetli od 5 sekundi do 30 minuta nakon uključivanja (podesivo)
- Preporučena visina montaže
- 3 m
- Detection angle
- 150° (zidna montaža), 360° (stropna montaža)
- Color
- bijela
- Material
- plastika
- Dimenzije artikla sa senzorom
- 103.5 x 30 x 30 mm
- Certificates
- CE, RoHS
Video
See the product in action and learn more about its key features.
A video walkthrough of this product is coming soon. Send an inquiry for more information.
Availability
Where to buy near you
Find the nearest authorized Green Tech points of sale.
Društvo za usluge, inženjering, proizvodnju i vanjsku trgovinu Elekting d.o.o. Sarajevo
SARAJEVO · Retailer
SEELIN Društvo za instalacije u građevinarstvu, trgovinu i usluge d.o.o.
SARAJEVO · Distributor
Begović Ramiz, Obrtnička djelatnost ''ACDC elektro servis'', Sarajevo
SARAJEVO · Distributor
Your nearest points of sale are shown. Confirm a specific product with the dealer before visiting.
Buy online
Order from authorized online partners
We connect this product to direct partner product pages. Until links are confirmed, send an inquiry to our team.
- Elux d.o.o. poslovna jedinica 1Link pending
Orašje
Send inquiry
Prices and availability are set by partners and may vary. Green Tech is a manufacturer catalog and does not sell directly.
