SENSORS AND CONTROLLERS · SENSORS AND DETECTORS

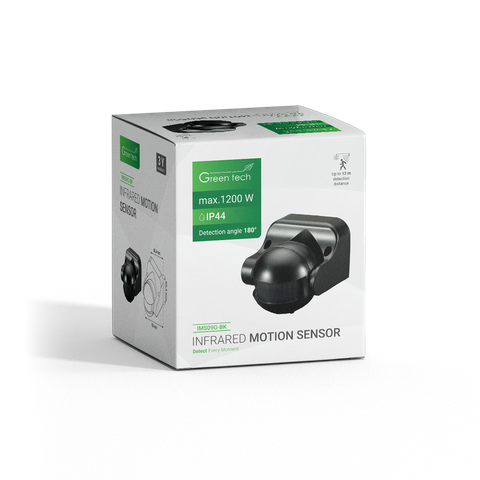

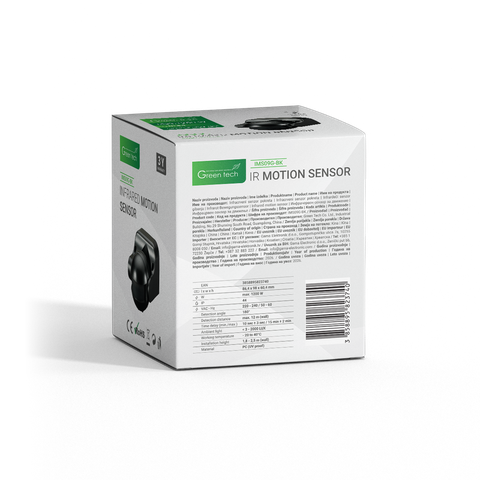

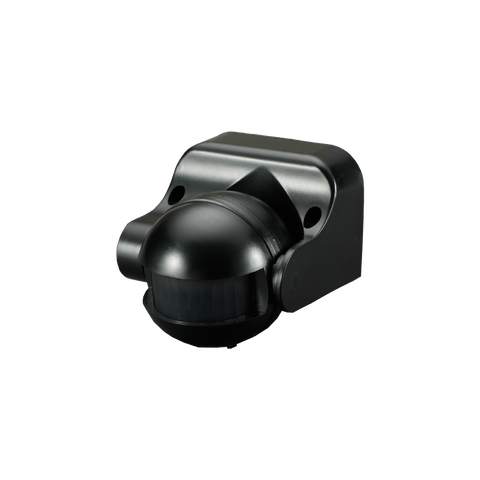

Infracrveni nadgradni senzor pokreta IMS09G-BK, IP44, 180°, crni

Green Tech Code: IMS09G-BK EAN: 3858895823740

Neto težina:

Installation method 4000 - 4500 K
Maximum load 1200 W
Ambient light < 3 - 2000 LUX
Time delay (min./max.) 10 sec ± 3 sec / 15 min ± 2 min
Send inquiry View specifications
  • 5-year warranty
  • Available at partners
Send inquiry

Technical specifications

Electrical

Voltage
AC 220 - 240 V / 50 - 60 Hz
IP rating
IP44

Mechanical & dimensions

Item dimensions
86,4 x 98 x 60,4 mm

Other

Installation method
4000 - 4500 K
Maximum load
1200 W
Ambient light
< 3 - 2000 LUX
Time delay (min./max.)
10 sec ± 3 sec / 15 min ± 2 min
Detection range
max. 12 metara
Detection angle
180°
Operating temperature
od -20 °C do 40 °C
Material
plastika (otporna na UV zračenje)
Color
crna
Mounting method
nadgradna montaža
Installation height
1,8 - 2,5 m (zid)
Certificates
CE, RoHS
